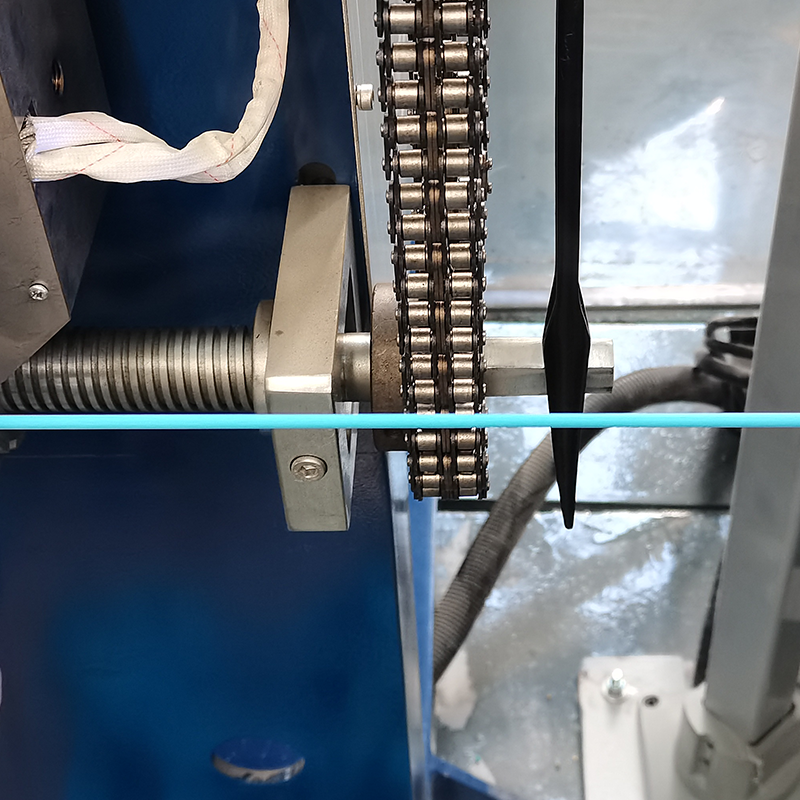

After extrusion, the finished cable is irradiated with LED ultraviolet light, and cross-linking can be completed in just a few seconds. The cross-linking speed is tens of times faster than traditional irradiation cross-linking, and it has the advantages of high production efficiency, low equipment investment, low energy consumption, and energy conservation and environmental protection. It can achieve synchronous extrusion and cross-linking, greatly shorten the production cycle, and reduce manufacturing costs. This material meets the requirements of GB/T 32129-2015, RoHS, REACH, and other environmental regulations. The finished product line meets the requirements of GB/T 19666-2019, IEC60332 and UL 1581FT-2.
| No. | Test Item | Standard | Typical Value | ||||
| DS-ZWG-105 | DS-ZWG-125 | ||||||
| 1 | Specific Gravity | / | 1.49 | 1.48 | |||
| 2 | Tensile Strength | ≥10.0 | 12.5 | 13 | |||
| 3 | Elongation at Break | ≥150 | 170 | 175 | |||
| 4 | Oxygen Index | ≥28 | 32 | 32 | |||
| 5 | Air Thermal Aging | Tensile Strength Change Rate | ±25 | 135℃ 168h | +10 | 158℃ 168h | +15 |
| Elongation Change Rate | ±25 | -12 | -18 | ||||
| 6 | Hot Extension (200℃, 0.2MPa, 15min) |
Elongation under Load | ≤100 | 45 | 40 | ||
| Permanent Deformation after Cooling | ≤25 | 0 | 0 | ||||
| 7 | Smoke Density | With Flame | ≤100 | 50 | 50 | ||
| Without Flame | ≤350 | 300 | 305 | ||||
| 8 | Volume Resistivity at 20℃ | 1.0×10¹⁴ | 5.8×10¹⁴ | 5.6×10¹⁴ | |||
| 9 | Dielectric Strength | ≥20 | 30 | 30 | |||
| 10 | Impact Brittleness Temperature | -25 | Pass | Pass | |||
| 11 | pH Value | ≥4.3 | 5 | 5 | |||
| 12 | HCl and HBr Content | ≤0.5 | <0.5 | <0.5 | |||
| 13 | Electrical Conductivity | ≤10 | 0.52 | 0.53 | |||
| *The above performance indicators are for the product after cross-linking. | |||||||
